RTX 5090 Power Connector Problem: What Buyers Need to Know About Overheating Issues

Nvidia’s latest flagship graphics card has emerged with a significant thermal challenge. Users of the RTX 5090 are reporting overheating problems with the 12VHPWR power connector, a design element that funnels enormous amounts of electrical current through a remarkably compact interface. This issue threatens both the longevity of premium hardware and the peace of mind of consumers who have invested thousands of dollars in a new graphics card.

Understanding the Connector Design Flaw

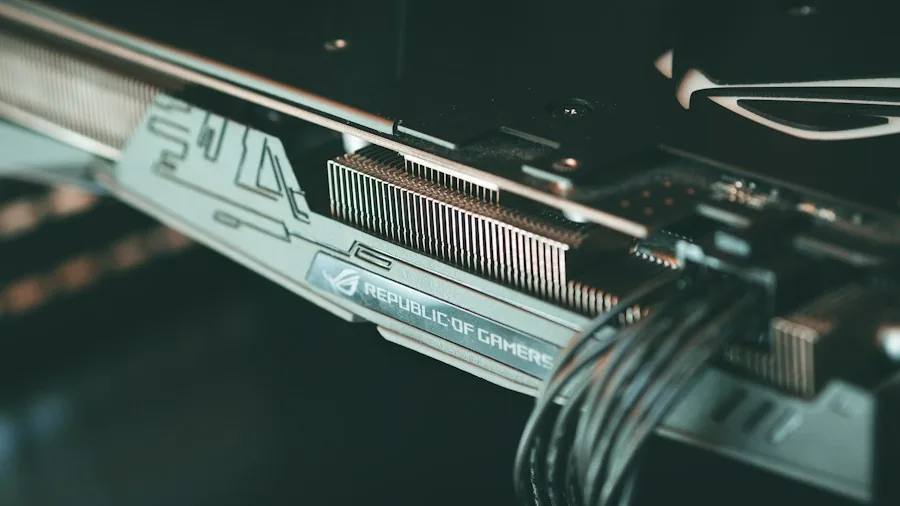

The 12VHPWR connector represents a departure from earlier multi-8-pin setups that proved more reliable. Rather than distributing power across multiple connectors with built-in safety margins, Nvidia consolidated high current flow into a 16-pin connector with only six active power pins handling the actual voltage delivery. The remaining four pins serve as sensors, leaving an inherently narrow pathway for electricity. This design bottleneck forces approximately 550 watts of power through wires rated at 16AWG, creating a scenario where minor misalignment or inconsistent contact resistance can generate dangerous heat buildup.

The fundamental problem stems from uneven current distribution. When pins don’t make proper contact, resistance spikes dramatically, and connector temperatures can skyrocket to levels that compromise solder joints and connector materials. Older dual 8-pin connectors naturally spread this load across more contact points, reducing per-pin stress significantly.

A Custom Solution Emerges

One hardware enthusiast has demonstrated a workaround that addresses the thermal problem directly. By soldering additional connections to the RTX 5090’s internal power rails and routing them to a custom power distributor module, the modder essentially bypassed the problematic 12VHPWR connector altogether. The distributor splits the current load across two standard 8-pin connectors instead, reverting to a proven architectural approach.

During a 48-hour stress evaluation at maximum load, the modified card maintained connector temperatures below 40 degrees Celsius despite drawing 550 watts continuously. This stands in stark contrast to reports of melting or severely degraded connectors in standard configurations. The solution requires direct soldering to the GPU’s circuit board and custom housing, making it invasive and irreversible.

What This Means for Shoppers

The emergence of this modification highlights a genuine reliability concern with current flagship graphics cards at the high end of the market. While Nvidia engineered the connector to theoretically handle up to 600 watts, real-world implementations have proven problematic. Some warranty claims related to third-party cables and similar issues have faced rejection from manufacturers, creating uncertainty about coverage.

Consumers considering premium GPU purchases should recognize that this connector architecture may present long-term durability risks, particularly in systems running at or near maximum power consumption. The failure mode involves physical damage to the connector and surrounding circuitry, potentially rendering an expensive component permanently unusable.

Warranty and Support Concerns

Manufacturers have been inconsistent in honoring warranty claims for 12VHPWR related damage, particularly when third-party cables or modifications are involved. Prospective buyers should review warranty terms carefully and understand that thermal damage from connector issues may fall into gray areas of coverage. While some partners have expressed interest in offering pre-modified versions with warranty support, these solutions remain unavailable to the general public at present.

For those unwilling to attempt custom modifications, the safer approach involves purchasing graphics cards with established track records and proven connector reliability. Mid-range and previous-generation cards often feature more conservative power delivery designs that prioritize stability over raw wattage density.

Looking Forward

This situation underscores a broader trend in GPU design where performance gains come at the cost of increased electrical demands packed into space-constrained connectors. The 12VHPWR connector’s limitations are becoming increasingly apparent as power consumption climbs with each generation. Future revisions may need to adopt either larger form-factor connectors, multiple dedicated power inputs, or entirely different power delivery systems to prevent recurrence of these thermal issues.

Buyers evaluating high-end graphics card purchases today should factor reliability and thermal stability into their decision-making process, not just raw performance specifications. The ability to run consistently without thermal stress directly impacts how many years of service a premium card will actually deliver.
